Easy Assembly 120km/h Wind Resistance Prefabricated Steel Structure with CE Certified
Quick Installation Prefabricated Steel Building by Tsin
Product Specifications
| Attribute | Value |
| Purlin | Z and C Shape Steel Purlin |
| Material Grade | Q235 Q345 |
| Drawing Design | Tekla Structures |
| Design Standard | AISC/EN/JIS/AS/GB |
| Connection Form | Bolt Connection |
| Material | H Steel Beam |
Product Overview

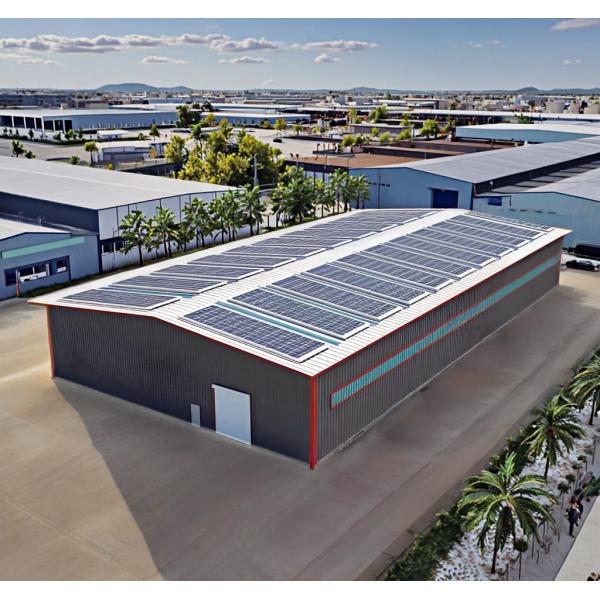

Modern industrial prefabricated steel structural warehouse building solution for workshop, garage, and shed applications. The structure consists of primary framework and secondary bracing system designed for stability and strength to withstand severe weather conditions.
Technical Specifications
| Dimension | Length x Width x Height, with or without inside pillars |
| Type | Portal frame, double slope, single span, partial mezzanine |
| Foundation | Concrete and steel foundation bolts |
| Column and beam | Welded H steel Q355B, all bolts connection |
| Bracing | X type bracing made from angle steel or steel bar |
| C or Z purlin | C/Z section steel with size C160-300 or Z160-300 |
| Roof and wall panel | Corrugated steel sheet or sandwich panel with insulation |
| Accessories | Skylight belts, ventilators, down pipe, gutter, doors, windows |
| Surface treatment | Painting or hot dip galvanized |
| Package | Nude or packed on steel pallet in 40'HQ/OT containers |
Wall and Roof System

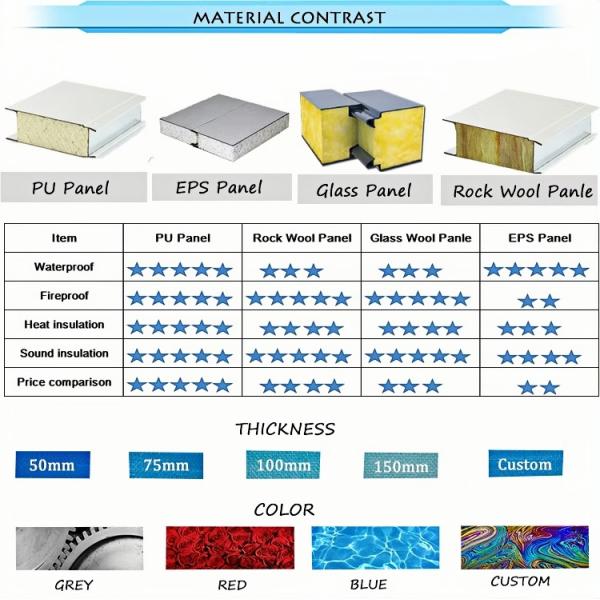

The roof panel is a single continuous length from eaves to ridge line. Wall panels are continuous from bottom wall to eaves, typically 0.4mm-0.6mm corrugated metal sheet or insulated sandwich panel for thermal requirements.
Key Advantages
- Superior strength-to-weight ratio compared to wood and concrete
- Manufactured to strict specifications and tolerances
- 100% recyclable materials
- Resistant to warping, bending, and twisting
- Easy to modify with flexible design options
- Reduced maintenance with higher safety and durability
Structural Benefits
Construction Efficiency
Factory prefabrication enables rapid on-site assembly through hoisting and bolting, significantly reducing construction time compared to traditional methods.
Environmental Sustainability
Minimal on-site waste and pollution with fully recyclable materials. Steel structures produce less construction waste than concrete buildings.
Cost Effectiveness
20-30% lower construction costs than traditional concrete buildings, with superior durability and seismic performance.
Lightweight Design
Reduced structural weight maintains stability while allowing for easier transportation and installation.
Company Profile
Qingdao Tsin Steel Structure Construction Technology Co., Ltd. provides integrated solutions for steel structures including design, fabrication, and installation guidance. With a 30,000m² factory and 2,500 ton monthly capacity, we serve global markets with advanced CAD/Tekla design capabilities and efficient processing equipment.
Frequently Asked Questions
1. Who are we?
Based in Shandong, China since 2025, we export to South America, Africa, Oceania, and other global markets with a team of 5-10 professionals.
2. How do we guarantee quality?
Pre-production samples and final inspection before shipment ensure consistent quality standards.
3. What products do we offer?
Steel structure warehouses, workshops, buildings, poultry houses, and prefab houses.
4. Why choose us?
20+ years experience in providing complete steel structure solutions with integrated design and construction services.
5. What services do we provide?
We accept various delivery terms (FOB, CFR, CIF, EXW) and payment methods (T/T, L/C, Cash) in multiple currencies with English/Chinese support.
